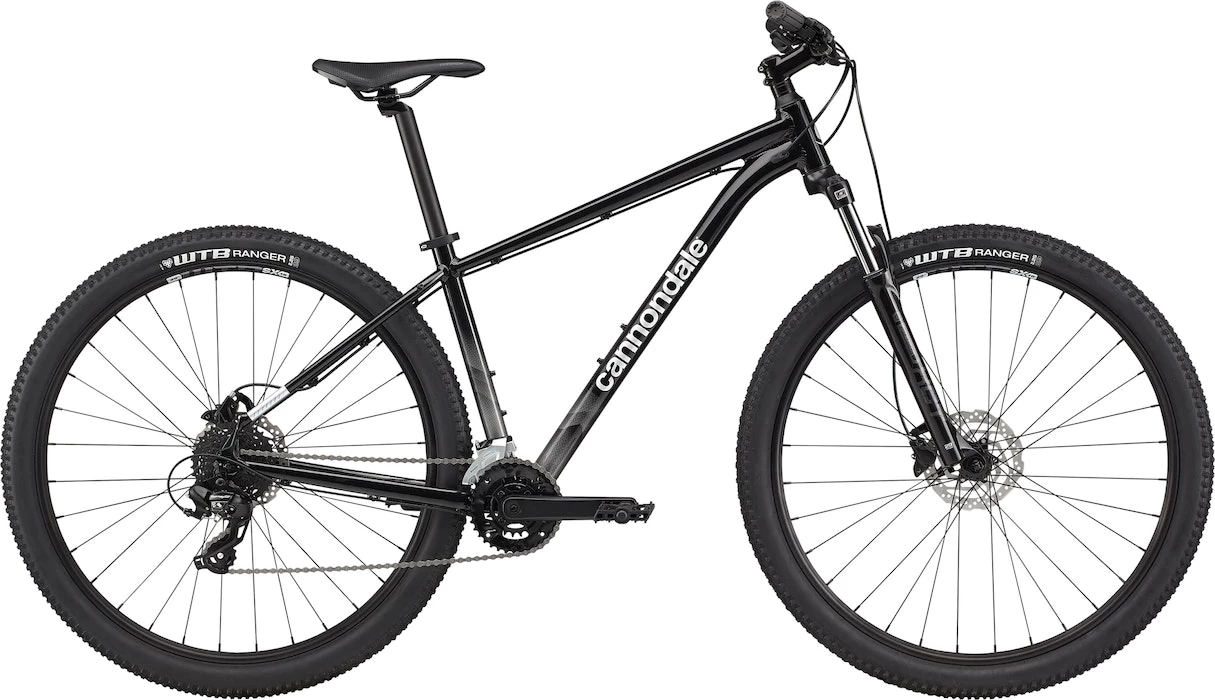

Cannondale 27.5/29 M Trail 7 2022 | Hardtail

Level Up.

A mountain bike built to raise your game & ignite a passion for the trail. Designed for the mountains & ready for anything.

Where it thrives

Low-impact trails, gravel roads, leisurely ride

What it’s built for

Handling, durability

Highlights

Light & durable SmartForm C3 Alloy frame

SR Suntour XCT suspension fork, 100mm travel

microSHIFT 8-speed drivetrain w/double chainring crank / Tektro hydraulic disc brakes

Specifications

DRIVETRAIN

Bottom Bracket

Sealed bearing cartridge, square taper

Chain

KMC Z8.1, 8-speed

Crank

Prowheel, 36/22

Front Derailleur

microSHIFT Dual Pull Compact, Steel Cage, Steel Band Clamp

Rear Cogs

Sunrace, 11-34, 8-speed

Rear Derailleur

microSHIFT M36L

Shifters

microSHIFT, 8-speed

FRAMESET

Fork

SR Suntour XCT DS, 100mm, coil, 42mm offset (27.5″) 46mm offset (29″)

Frame

SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73

Headset

Semi Integrated, 1-1/8″

WHEELS

Front Hub

Shimano HBTX 505

Rear Hub

Shimano FHTX505

Rims

WTB SX19, 32h

Spokes

Stainless Steel, 14g

Tire Size

2.25

Tires

WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound

Wheel Size

29

BRAKES

Brake Levers

Tektro hydraulic disc

Brakes

Tektro M275 hydraulic disc, 160/160mm rotors

COMPONENTS

Grips

Cannondale Dual-Density

Handlebar

6061 Alloy Riser, 31.8mm, 25mm rise, 700mm

Saddle

Cannondale Stage 3

Seatpost

Cannondale 3, 6061 Alloy, 31.6 x 350/400mm

Stem

6061 Alloy, 31.8, 8°
