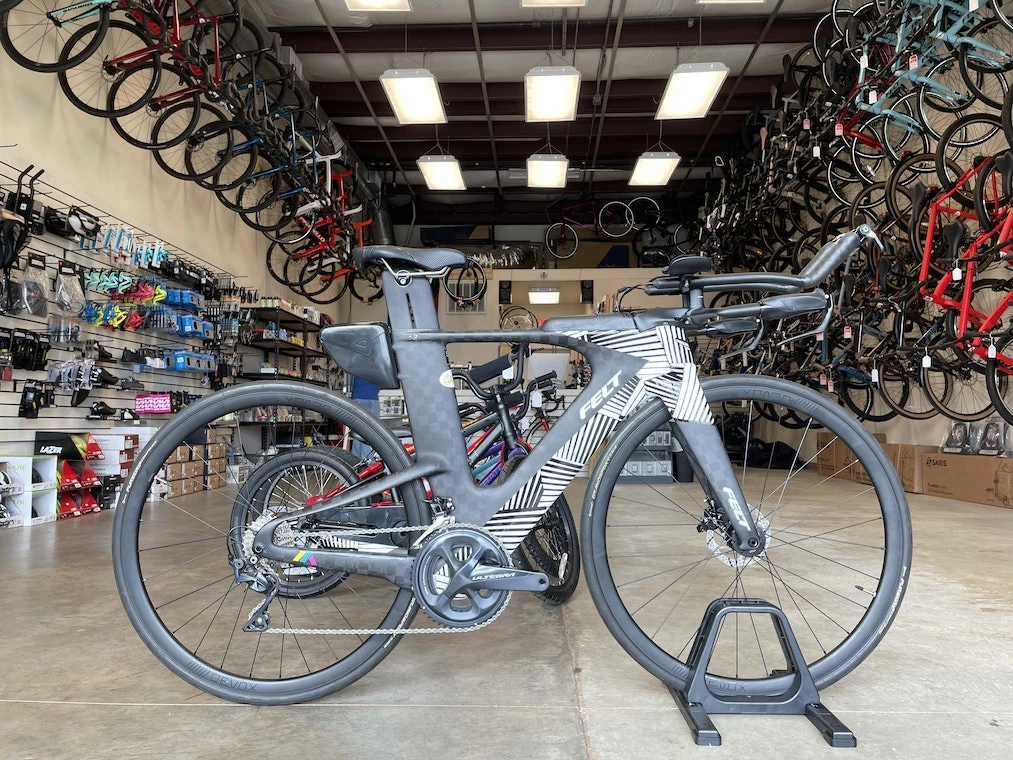

Felt IA | Advanced | Ultegra 2020 | Triathlon & Time Trial Bikes

Our very first bike was made for one of the greatest triathletes in history—Paula Newby-Fraser—who rode her stealth black Felt B2 to multiple world championship victories. Since then, we’ve never stopped pursuing the ideal triathlon racing machine. The IA is the culmination of 30 years of iterative design & painstaking development, & its results at the highest level of competition speak for themselves. So we can tell you that the IA is the most aerodynamic bike in the world. We can also say that it’s the best-handling triathlon bike on the planet. But what we should really mention is that the IA won the Kona World Championship a staggering six times in a row, & it holds both bike & overall course records across the lava fields of Hawaii. So, really, what else do you need to know?

Specifications

VERSION IA | 5 SERIES IA DISC (1.0)

MODEL IA | Advanced | Ultegra MARKET Global

PRICE $ 5,499 FINISH 1) Desert (Geo) 2) Aquafresh (Geo)

MODEL CODE 1) FB-21A-IAX14-DT-FA 2) FB-21A-IAX14-AF-FA MODEL # M3 1) BBJCA05 2) BBJCA11

SIZES 5 | 48, 51, 54, 56, 58cm FRAME Felt IntegratedAero Disc 1.0 | UHC Advanced + TeXtreme carbon fiber

FRAME TECHNOLOGIES MMC / InsideOut / Felt CALpac 2.0 top tube storage with Felt AEROpac 2.0 top tube storage cover BOTTOM BRACKET TYPE Threaded | BSA 68mm

BRAKE TYPE, REAR Disc, Flat Mount | 25mm thickness, Ø140mm minimum rotor DERAILLEUR HANGER TYPE, FRONT Brazed-On | integrated backup plate, non-replaceable, aluminum

DERAILLEUR HANGER TYPE, REAR Standard Mount | TA 12×142 TRI/TT, horizontal, replaceable, aluminum HEAD-TUBE TYPE Felt Aero | 1.125″

PROTECTOR TYPE Steerer stop integration for head tube protection / Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection ROUTING TYPE Semi-Hidden | convertible for electronic or mechanical

SEAT POST / CLAMP TYPE Felt Aero TRI InternaLoc 1.0 | integrated with titanium bolts WHEEL TYPE 700c

TIRE MAX (CLEARANCE) 28mm (4mm) FORK Felt IntegratedAero Disc 1.0 – Dagger | UHC Advanced + TeXtreme carbon fiber

HEADSET IS (IS-2) AXLE, FRONT TA 12×100

AXLE, REAR TA 12×142, horizontal FORK TECHNOLOGIES Monocoque construction / Integrated crown race / Felt Dagger carbon fiber cover for Junction or BlipBox storage & hidden brake hose routing

BRAKE TYPE, FRONT Disc, Flat Mount | Ø140mm minimum rotor FORK OFFSET 48, 51cm: 50mm / 54, 56, 58cm: 45mm

HEADSET SPECIFICATION Top Cap: stem integrated / Top Cover: stem integrated / Bearings: FSA integrated sealed cartridge, MR122 / Spacers: – / Compression Device: Felt for carbon steerer tube / Compression Ring: FSA H2145 / Crown Race: fork integrated AXLE, FRONT SPECIFICATION Devox AxleTA 123.2 | 118mm + 5.2mm head, M12 x 1.5P x 13mm, Switch lever compatible

AXLE, REAR SPECIFICATION Devox AxleTA 172-9 L | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever DRIVETRAIN 2×11-speed

SHIFTERS microSHIFT A11, TRI/TT DERAILLEUR, FRONT Shimano Ultegra R8000, braze-on

DERAILLEUR, REAR Shimano Ultegra R8000, short cage CRANK Shimano Ultegra R8000, 52/36T

BOTTOM BRACKET Shimano BBR60 CASSETTE Shimano Ultegra R8000, 11-28T

CHAIN Shimano Ultegra HG701 CRANK LENGTH 48, 51cm: 165mm / 54, 56cm: 170mm / 58cm: 172.5mm /

BRAKE LEVERS TRP HD-T910, hydraulic BRAKE CALIPERS TRP HD-T910, hydraulic disc, flat mount

BRAKE ROTORS TRP TR-25, Center Lock, 140mm WHEELS Reynolds AR58/62 DB Custom, Shimano

TIRES Continental Grand Sport Race, 700x25c TIRE COMPATIBILITY Tubeless Ready

RIMS Carbon HANDLEBAR Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum

STEM Felt Dagger 31.8 Integrated | SuperLite aluminum GRIPS / TAPE Felt EVA arm pads with anti-microbial cover & Felt Gel tape

HANDLEBAR CLAMP DIAMETER 31.8mm HANDLEBAR WIDTH 48, 51cm: 39cm / 54, 56, 58cm: 42cm

STEM CLAMP DIAMETER 31.8mm STEM ANGLE -6°

STEM LENGTH 110mm STEM PARTS & TECHNOLOGIES Integrated / Integrated top cap / Integrated headset top cover / Integrated fork cover mounting / Integrated cable routing

SEATPOST Felt Aero TRI IL 1.0 VM | UHC Advanced carbon fiber SADDLE ISM PS1.0

SEATPOST OFFSET 0mm SEATPOST LENGTH 300mm

SEATPOST PARTS & TECHNOLOGIES Integrated / Compliance Channels with aero covers / Aero TRI InternaLoc 1.0 seatpost clamping system / Patented VariMount (VM) saddle rail clamping system EXTRAS Felt BTSpac seat tube storage box / Reynolds tubeless valve stems (2x75mm) / Compliance Channel aero seatpost covers / Carbon assembly paste

WEIGHT 21.76 lb, 9.89 kg WEIGHT DISCLAIMER The most accurate way to determine a product’s weight is to have your local dealer weigh it for you. Because we understand that weight is an important metric, we strive to list it when possible. When listed, weight is based on a single sample in a specific size & with all items as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, & accessories). Felt continues to be an industry leader in weight & performance.
