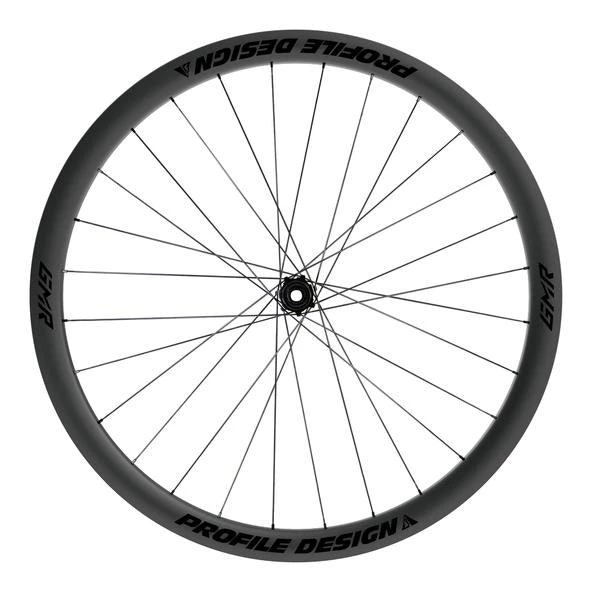

Profile Design GMR 38 Carbon Tubeless Disc-Brake Wheelset | Wheel Sets

The GMR 38mm rim depth makes for a great all rounder. If you’re looking for a wheelset for every day use, particularly if your riding conditions are often windy, this is the one. The 38mm height offers a great aero boost over a standard alloy wheelset but doesn’t add so much side area that the wind can push you around.

Of course, the shallower rim is also lighter, so it’s well suited to hilly terrain.

The GMR 38 Tubeless Dis-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 19mm, the wheelset is well suited for rough roads and tests fastest with a 28mm tire in the majority of wind angles.

Specifications

Front Wheel

Weight: 680g

Diameter: 700c

Hub: 6061-T6 Alloy

Bearing Size: 6901

Hub Compatibility: 12 x 100mm (Through-Axle)

Rotor Compatibility: Center Lock

Rim Depth: 38mm

Rim Width (Outside): 26mm

Rim Width (Inside): 19mm

Color: UD Carbon

Spokes: Sapim® CX-Ray Aero Spoke

Spoke Shape: Straight Pull, Bladed

Spoke Count: 20

Spoke Pattern Non-Drive: 2 cross

Spoke Pattern Drive: 2 cross

Spoke Length Non Drive: 283mm

Spoke Length Drive 282mm

Nipples: 7075 Alloy Polyax Double Square

External Nipples: Yes

Tire Compatibility: Tubeless Ready (TLR) / Clincher

Max Tire Pressure: 70-100psi (also refer to Tire sidewall)

Tire Width: 700c x 28-38mm

Rear Wheel

Weight: 920g

Diameter: 700c

Hub: 6061-T6 Alloy

Bearing Size: 6802

Hub Compatibility: 12 x 142mm (Through-Axle)

Rotor Compatibility: Center Lock

Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp

Rim Depth: 38mm

Rim Width (Outside): 26mm

Rim Width (Inside): 19mm

Color: UD Carbon

Spokes: Sapim® CX-Ray Aero Spoke

Spoke Shape: Straight Pull, Bladed

Spoke Count: 24

Spoke Pattern Non-Drive: 3 cross

Spoke Pattern Drive: 3 cross

Spoke Length Non Drive: 288mm

Spoke Length Drive: 287mm

Nipples: 7075 Alloy Polyax Double Square

External Nipples: Yes

11-Speed Compatible Hub: Yes

12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)

Tire Compatibility: Tubeless Ready (TLR) / Clincher

Max Tire Pressure: 70-100psi (also refer to Tire sidewall)

Tire Width: 700c x 28-38mm

Wheelset

Set Weight: 1600g

Max Recommended Rider Weight (lbs): 220lbs

Tubeless valves Stems.

Tubeless Rim Strip(s)

10 Speed Cassette spacer – (as these wheels are designed for SRAM, Shimano 11 speed cassettes)

2 x 283mm extra spokes

2 x 282mm extra spokes

2 x 287mm extra spokes

2 x 288mm extra spokes

8 extra nipples

8 extra nipple washers
